| Stage Dimensions: |
8m x 4.5m x 1.2m |
| Stage Access: |
Rear of stage right |
| Storage: |
Under stage, access from stage left |
| Visiting Monitors: |
Stage Left (for access to our stagebox via 5m Veem to 40XLR breakout). 32A & 16A single phase power on 30A and 16A 'B' type MCB available. |
| Backline Tech Position: |
Preferably stage right |
| Clearance: |
Stage to lowest installed obstruction (moving head light) 2.2m |
| Facilities Power: |
| 3Ø Power-lock via 125A ‘D’ type MCB (5m from stage) |
| 32A 3Ø via 30A ‘B’ type MCB (under stage) |
|
| Backline Power: |
6 x 16A with 6 x 13A snakes (rear of stage) |
| FOH Power: |
| 32A 3Ø via 30A ‘B’ type MCB |
| 8 x 13A via 1Ø of above. |
|

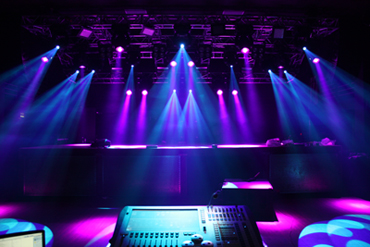

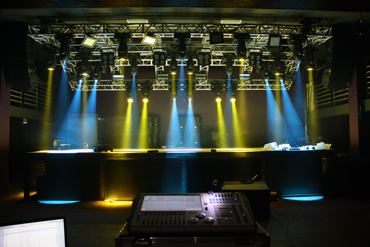

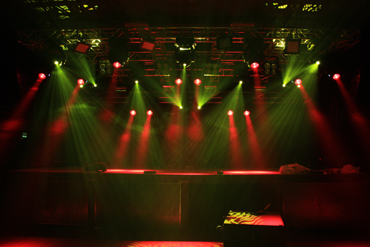

| Flying Points: |
| 8m Ladder truss on 2 Lodestar 500kg (Rear Stage) |
| 8m wide by 2m deep truss on 4 Lodestar 500kg (Mid Stage) |
| 8m wide by 2m deep truss on 4 Lodestar 500kg (Front Stage) |
| 8m wide frontlight truss on Lodestar 500kg (Over Dancefloor) |
| |
| All truss is Litec QD-30s Heavy Duty truss with 290mm sides. All motors are 500kg Lodestar motors running at 4m per minute fall rate; all are fitted with double brakes, bi phase optical encoders and kinesys load shackles. |
| |
| Touring productions should send a plan of any supplemental lighting complete with weights and positions on truss prior to show. |
|
|
